TPLINK EAP 615 AX1800 WALL ROUTER

TP-Link AX1800 Wall Plate WiFi 6 Access Point, 1x 10/100/1000 Mbps Ethernet Port Uplink, 2 Dual-Band Antennas (2.4GHz & 5GHz), 5 GHz Up to 1201 Mbps & 2.4 GHz Up to 574 Mbps, White | EAP615-WALL

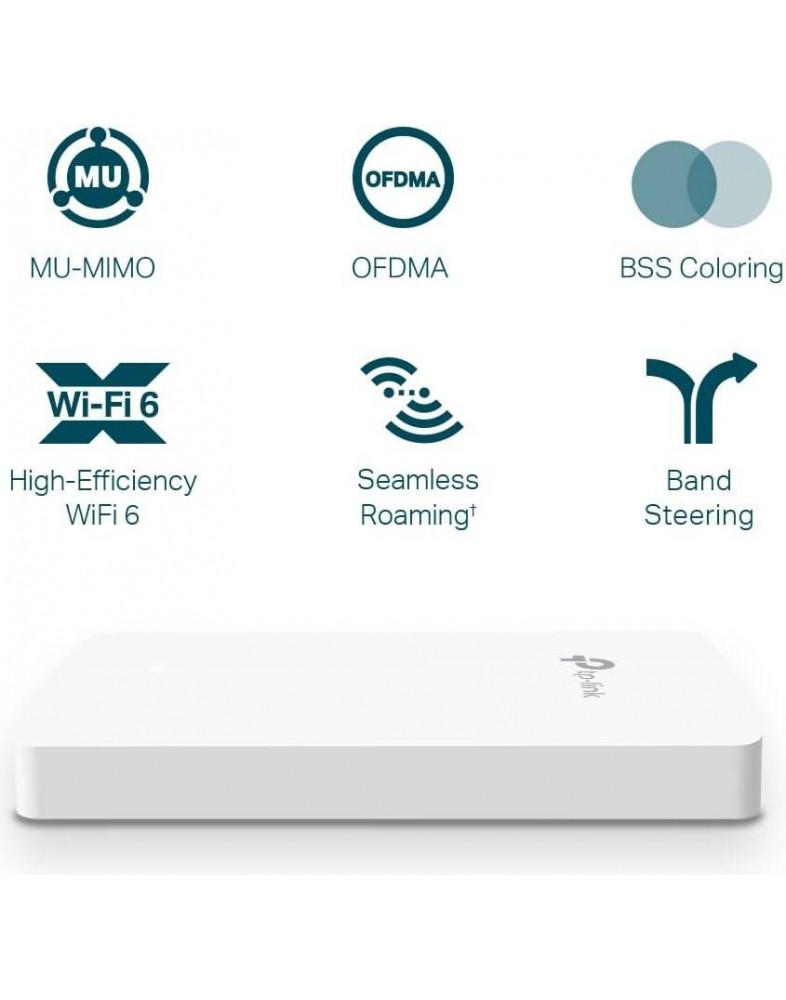

• Ultra-Fast Wi-Fi 6 Speeds ‘Designed with the latest wireless Wi-Fi 6 technology featuring 1024-QAM and Long OFDM Symbol, the EAP615-Wall boosts dual-band Wi-Fi speeds up to 1800 Mbps. With 4 Spatial streams, multi-user throughput is incredibly increased to drive more applications.
• Dedicated Wi-Fi Network In Each Room ‘Designed for office cubicals and hotel rooms while allowing guests to enjoy their own private Wi-Fi network.

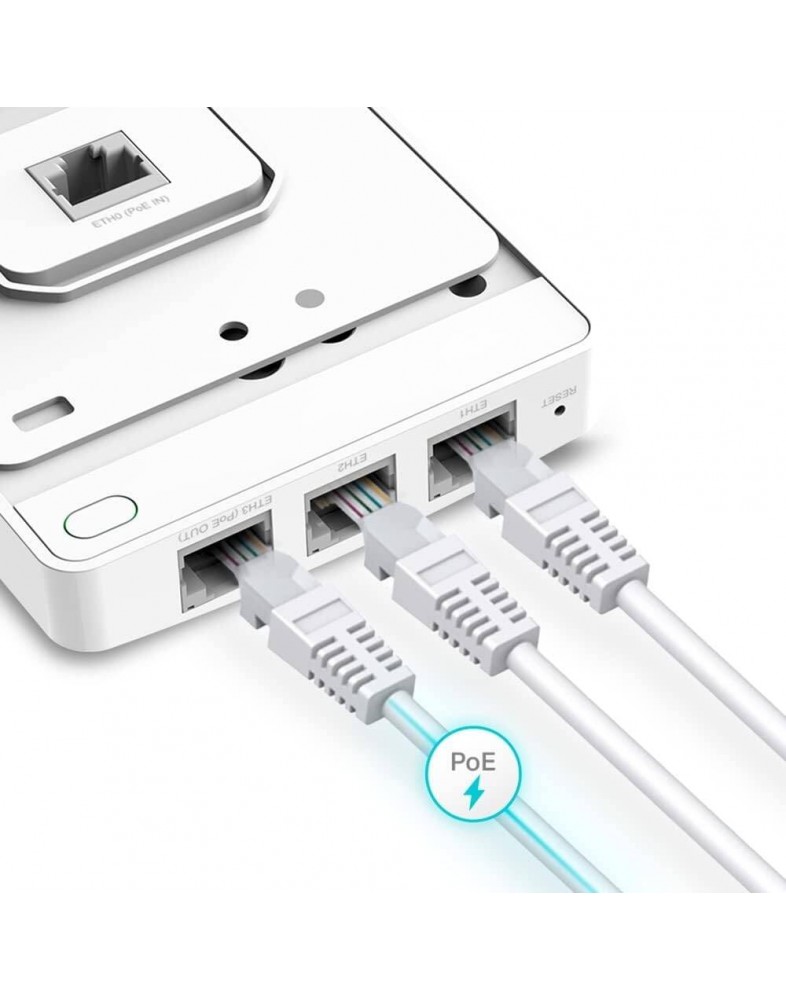

• Gigabit Ports with PoE Support ‘4 Gigabit Ethernet Ports 1 - Uplink 802.3 af/at PoE powered port, 3 - Downlink ports, with one access port supporting PoE pass-through to provide power for a wired device, making deployment effortless and flexible.
• Integrated into Omada SDN ‘Omada's Software Defined Networking (SDN) platform integrates network devices including access points, switches & gateways with multiple control options offered - Omada Hardware controller, Omada Software Controller or Omada cloud-based controller*(Contact TP-Link for Cloud-Based Controller Plan Details). Standalone mode also applies.
• Cloud Access ‘Remote Cloud access and Omada app brings centralized cloud management of the whole network from different sites all controlled from a single interface anywhere, anytime.

Specifications

HARDWARE FEATURES

Interface Uplink: 1× 10/100/1000 Mbps Ethernet Port

Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT)

Physical Security Lock Yes

Button Reset

Power Supply 802.3af/at PoE

Power Consumption EU: 10W (802.3at PoE, PoE Out off)

US: 11.5W (802.3at PoE, PoE Out off)

Dimensions (W x D x H) 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)

Antenna 2 Dual-Band Antennas

2.4 GHz: 2× 3 dBi

5 GHz: 2× 4 dBi

Mounting Wall Plate Mounting

WIRELESS FEATURES

Coverage 50㎡ (600 ft²)△

Wireless Client Capacity 100+△

Concurrent Clients 120+△

Wireless Standards IEEE 802.11ax/ac/n/g/b/a

Frequency 2.4 GHz and 5 GHz

Signal Rate 5 GHz: Up to 1201 Mbps

2.4 GHz: Up to 574 Mbps

Wireless Functions 16 SSIDs (Up to 8 SSIDs on each band)

Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control (Adjust Transmit Power on dBm)

QoS (WMM)

Seamless Roaming†

Beamforming

MU-MIMO

Rate Limit

Load Balance

Airtime Fairness

Band Steering

Reboot Schedule

Wireless Schedule

RADIUS Accounting

MAC Authentication

Wireless Statistics

Static IP/Dynamic IP

Wireless Security Captive Portal Authentication†

Access Control

Wireless MAC Address Filtering

Wireless Isolation Between Clients

VLAN

Rogue AP Detection

802.1X Support

WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power CE:

< 20 dBm (2.4 GHz, EIRP)

< 23 dBm (5 GHz, EIRP)

FCC:

< 21 dBm (2.4 GHz)

< 21 dBm (5 GHz)

MANAGEMENT

Omada App Yes

Centralized Management Omada Hardware Controller (OC300)

Omada Hardware Controller (OC200)

Omada Software Controller

Cloud Access Yes (Through OC300, OC200, or Omada Software Controller)

Email Alerts Yes

LED ON/OFF Control Yes

Management MAC Access Control Yes

SNMP v1, v2c, v3

System Logging Local/Remote Syslog Local/Remote Syslog

SSH Yes

Web-based Management HTTP/HTTPS

L3 Management Yes

Multi-site Management Yes

Management VLAN Yes

Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS

Certification CE, FCC, RoHS

Package Contents AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall

Installation Guide

Mounting Kits

System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10

Environment Operating Temperature: 0–40 ℃ (32–104 ℉)

Storage Temperature: -40–70 ℃ (-40–158 ℉)

Operating Humidity: 10–90% RH non-condensing

Storage Humidity: 5–90% RH non-condensing
