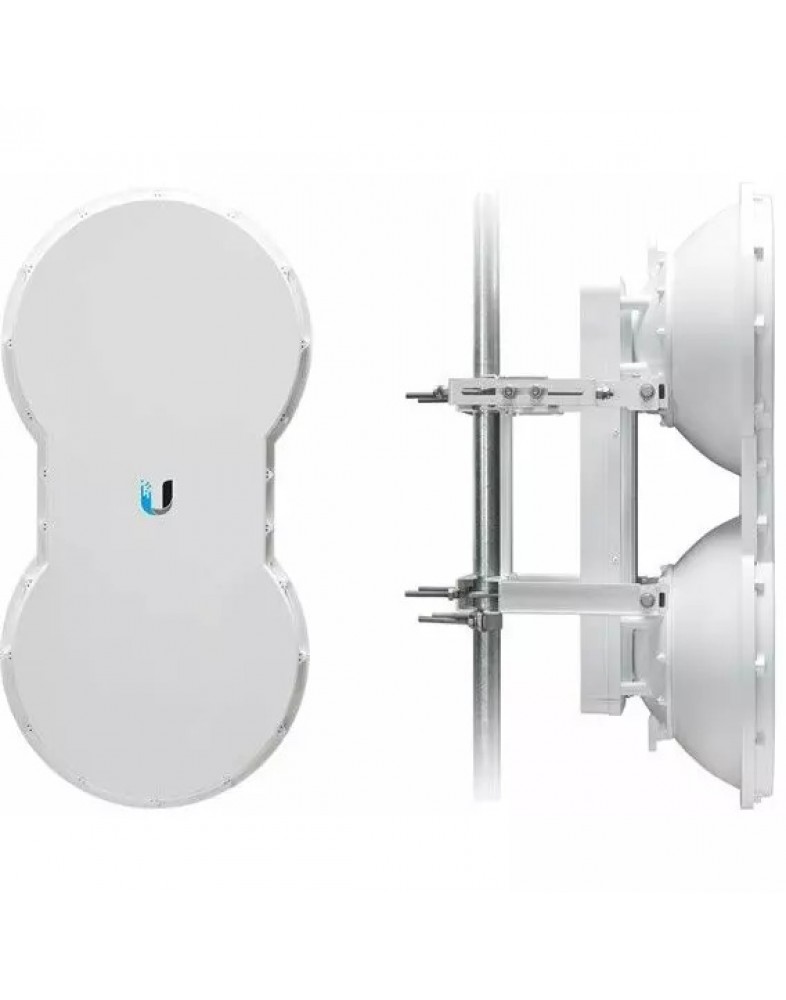

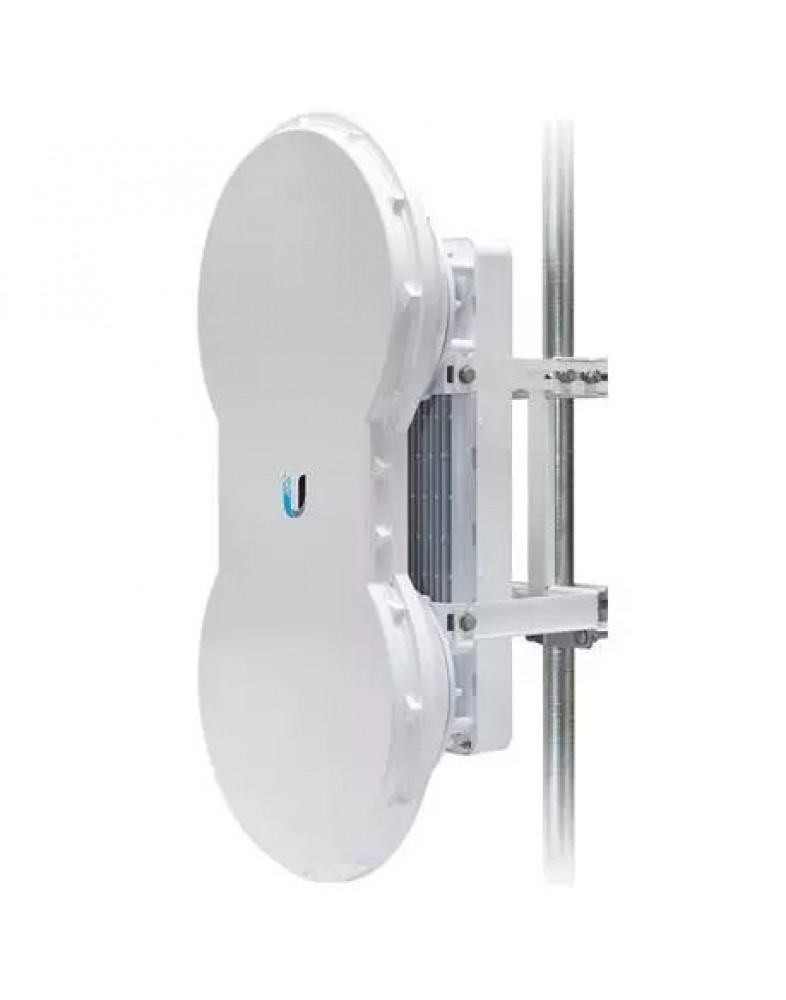

Ubiquiti AirFiber AF-5U, 1Gbps+ Backhaul, 5.7-6.2GHz

Ubiquiti AirFiber AF-5U, 1Gbps+ Backhaul, 5.7-6.2GHz

OVERVIEW

The most advanced current backbone technology in the 5GHz band. Thanks to advanced HDD technologies, eXtended Range, 1024QAM modulation, it communicates at a speed of up to 1.2+Gb/s.

The connection is operated in the free 5GHz band, so you do not have to pay any license fees for its operation.

In addition to the standard TDD and FDD support, AirFiber came with the new HDD (Hybrid Division Duplexing) technology. AirFiber 5 also brings new xRT (eXtended Range Technology) technology enabling a maximum range of 100+km.

This, together with other innovative technologies and the airOS F system, form a unique connection that is very easy to operate and install, and that achieves very high transfer speeds with very low latencies.

PACKAGE CONTENTS

• device
• holder
• PoE power adapter
• power cable
• duct tape (2)

SPECIFICATIONS

Wireless frequency [GHz]: 5

Sensitivity [dBm]: -95

Frequency range [MHz]: 5725-6200 Gigabit

LAN: Yes

GPS module: Yes

Isolation between connectors [dB]: 28

LAN: (1) 10/100/1000Mbps + (1) 10/100Mbps

Max. power consumption [W]: 40

Maximum modulation: 1024QAM

Power supply via PoE: 42 .. 58V DC

Operating mode: Bridge

Others: RJ-12 - measuring tone port

Number of LAN ports: 2

Number of built-in antennas: 4

IPv6 support: Transparent (bridge mode)

PoE: Input

Operating temperature: -40 to 55

Front-to-back ratio [dB]: 70

WiFi transmission speed - 5GHz [Mb/s]: 1280

Encryption: 128bit AES

Buttons: Reset

Antenna type: Built-in

Outdoor use: Yes

5GHz Transmit Power [dBm]: 27

Radiation angle - H.pol.: 6

Radiation angle - V.pol.: 6

Antenna gain [dBi]: 23

Width [mm]: 468

Height [mm]: 938

Depth [mm]: 281

Weight [g]: 16000
